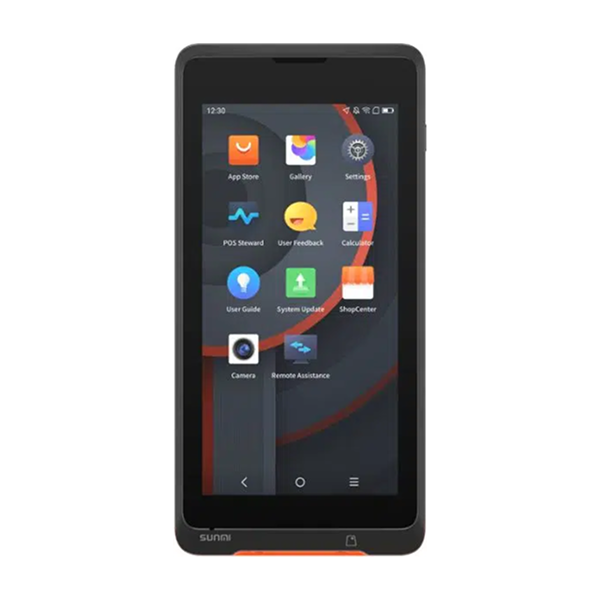

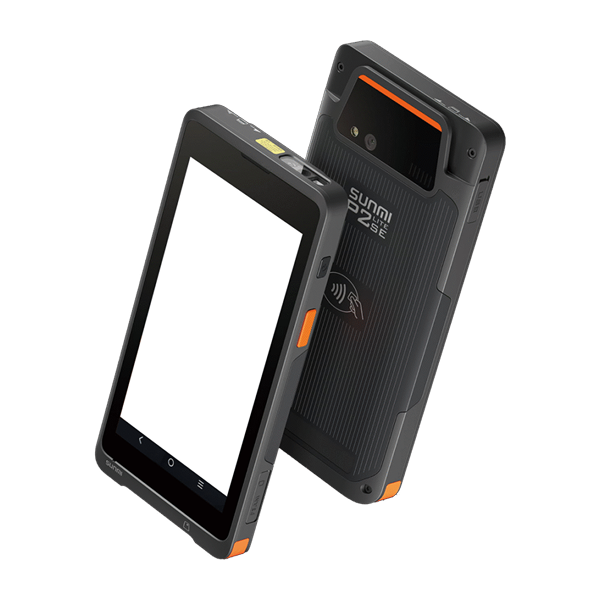

Smart Payment Terminal
| Product Model | T6810 |
| OS | SUNMI OS (*based on Android 11 Go) |
| CPU | Cortex-A53 quad-core 2.0GHz |
| Memory | 1GB RAM+8GB ROM |
| Display | 5"FW+, Capacitive Touch Screen / 5"HD, Capacitive Touch Screen(optional) |
| Magstripe Reader | 1/2/3 track; Bi-directional card reading; ISO 7810/7811 compliant |
| IC Card Reader | Support smart IC card, complies with ISO 7816/ EMV/PBOC 3.0 standards |
| NFC Reader | EMV CL 3.1, ISO/IEC 14443 TypeA&B, Mifare card, Paypass、Paywave |
| PSAM Card Slot | PSAM card slot, complies with ISO 7816 standard |
| eSIM | Optional |
| Communication Methods | 4G/3G/2G |
| Pogo Pin | Optional |
| Wi-Fi | 2.4G/5G IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 2.1/3.0/4.2 /5.0 Support BLE |
| GPS | GPS, AGPS, Galileo, GLONASS, Beidou |
| Sim Card/Micro SD card slot | Option 1: Dual SIM card slot, support 1.8V/3.0V Option 2: Single SIM card slot and Micro SD card slot (up to 32GB) |
| Headphone Jack | USB Type-C |
| Button | Power On button |
| Speaker | 1w |
| Port | 1 Type-C USB 2.0 HS, supports OTG |
| Camera | Front: No Rear: 2MP FF Support 1D/2D |
| Battery | 3.8V/3000mAh |
| Certifications | PCI PTS V6.X, EMV Contactless L1, EMV L1 & L2, Mastercard TQM, PayPass, payWave, D-PAS, JCB, AE CE, FCC, RoHs, QuickPass |
| Adapter | INPUT: AC 100-240V OUTPUT: 5V/1A 5V/2A (Optional) |
| Dimensions | 148.5*72.5*15.6mm |
| Drop Test | 1.2m *Data from SUNMI Lab |
| Weight | 225g (including battery) |
| Environment | Operating temperature: -10-50°C Storage temperature: -20-60°C |
| Base (Optional) | Single-slot Charging Base Multi-slot Charging Base |
| Product Model | T6810 |
| OS | SUNMI OS (*based on Android 11 Go) |
| CPU | Cortex-A53 quad-core 2.0GHz |
| Memory | 2GB RAM+32GB ROM 2GB RAM+16GB ROM (optional) |
| Display | 5"FW+, Capacitive Touch Screen 5"HD, Capacitive Touch Screen(optional) |
| Magstripe Reader | 1/2/3 track; Bi-directional card reading; ISO 7810/7811 compliant |
| IC Card Reader | Support smart IC card, complies with ISO 7816/ EMV/PBOC 3.0 standards |
| NFC Reader | EMV CL 3.1, ISO/IEC 14443 TypeA&B, Mifare card, Paypass、Paywave |
| PSAM Card Slot | PSAM card slot, complies with ISO 7816 standard |
| eSIM | Optional |
| Communication Methods | 4G/3G/2G |
| Pogo Pin | 2 Pogo Pin |
| Wi-Fi | 2.4G/5G IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 2.1/3.0/4.2/5.0 Support BLE |
| GPS | GPS, AGPS, Galileo, GLONASS, Beidou |
| Sim Card/Micro SD card slot | Option 1: Dual SIM card slot, support 1.8V/3.0V Option 2: Single SIM card slot and Micro SD card slot (up to 32GB) |
| Sensor | Gravity Sensor P/L sensor |
| Headphone Jack | USB Type-C |
| Button | Power On button |
| Speaker | 1w |
| Port | 1 Type-C USB 2.0 HS, supports OTG |
| Camera | Front: 0.3 MP Rear: 5MP auto focus with flash LED, Support 1D/2D |
| Battery | 3.8V/3000mAh |
| Certifications | PCI PTS V6.X, EMV Contactless L1, EMV L1 & L2, Mastercard TQM, PayPass, payWave, D-PAS, JCB, AE CE, FCC, RoHs, QuickPass |
| Adapter | INPUT: AC 100-240V OUTPUT: 5V/1A 5V/2A (Optional) |
| Dimensions | 148.5*72.5*15.6mm |
| Drop Test | 1.2m *Data from SUNMI Lab |
| Weight | 225g (including battery) |
| Environment | Operating temperature: -10-50°C Storage temperature: -20-60°C |
| Base (Optional) | Single-slot Charging Base Multi-slot Charging Base |
| Product Model | T6810 |
| OS | SUNMI OS (*based on Android 11 Go) |
| CPU | Cortex-A53 quad-core 2.0GHz |
| Memory | 3GB RAM+32GB ROM 2GB RAM+16GB ROM (optional) |
| Display | 5"FW+, Capacitive Touch Screen 5"HD, Capacitive Touch Screen(optional) |
| Magstripe Reader | 1/2/3 track; Bi-directional card reading; ISO 7810/7811 compliant |
| IC Card Reader | Support smart IC card, complies with ISO 7816/ EMV/PBOC 3.0 standards |
| NFC Reader | EMV CL 3.1, ISO/IEC 14443 TypeA&B, Mifare card, Paypass、Paywave |
| PSAM Card Slot | PSAM card slot, complies with ISO 7816 standard |
| eSIM | Optional |
| Communication Methods | 4G/3G/2G |
| Pogo Pin | 2 Pogo Pin |
| Wi-Fi | 2.4G/5G IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 2.1/3.0/4.2/5.0 Support BLE |
| GPS | GPS, AGPS, Galileo, GLONASS, Beidou |
| Sim Card/Micro SD card slot | Option 1: Dual SIM card slot, support 1.8V/3.0V Option 2: Single SIM card slot and Micro SD card slot (up to 32GB) |
| Sensor | Gravity Sensor P/L sensor |
| Headphone Jack | USB Type-C |
| Button | Power On button Scan button (left/right) |
| Speaker | 1w |
| Port | 1 Type-C USB 2.0 HS, supports OTG |
| Camera | Front: 0.3 MP Rear: 5MP auto focus with flash LED, Support 1D/2D |
| Battery | 3.8V/3000mAh |
| Certifications | PCI PTS V6.X, EMV Contactless L1, EMV L1 & L2, Mastercard TQM, PayPass, payWave, D-PAS, JCB, AE CE, FCC, RoHs, QuickPass |
| Adapter | INPUT: AC 100-240V OUTPUT: 5V/1A 5V/2A (Optional) |
| Dimensions | 148.5*72.5*15.6mm |
| Drop Test | 1.2m *Data from SUNMI Lab |
| Weight | 235g (including battery) |
| Environment | Operating temperature: -10-50°C Storage temperature: -20-60°C |
| Base (Optional) | Single-slot Charging Base Multi-slot Charging Base |
| Scanner | 1D/2D barcode scan engine |
