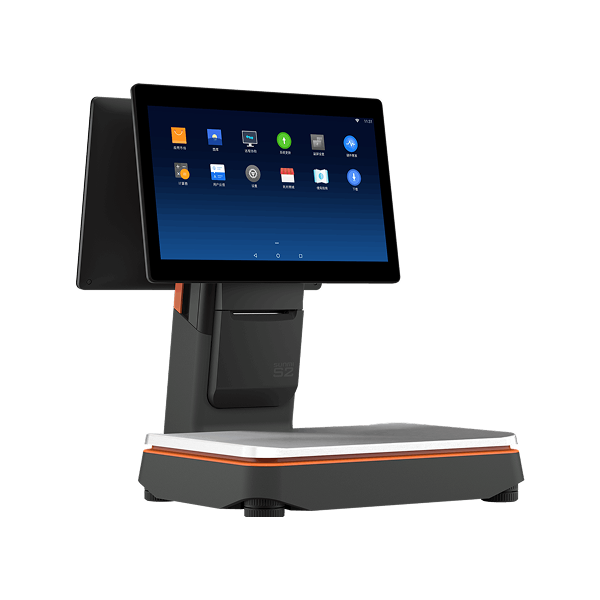

Smart Scale Terminal
| Product Model | Config 1: ACS-L2502 (dual-display (small+big) version),Config 2: ACS-L2503 (dual-display (big+big) version) |
| OS | SUNMI OS (*based on Android 7.1) |
| Processor | Cortex-A53, octa-core 1.4GHz |
| Memory | 4GB RAM+64GB ROM |
| Display | Config 1: Main:15.6"FHD,1920*1080 capacitive multitouch Secondary: 10.1"HD,1024*600,Config 2: Main: 15.6"FHD,1920*1080 capacitive multitouch Secondary: 15.6"FHD,1920*1080 capacitive multitouch |
| Camera | Facial recognition camera (optional) |
| Speaker | 1*3W |
| Printer | Built-in 80mm thermal printer,Auto cutter: equipped,Print speed: 250mm/s,Print life: 100km,Paper roll: φ 80mm |
| Wi-Fi | 2.4GHz/5GHz IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 2.1/3.0/4.0 BLE |
| LAN | LAN 100M |
| Ports | 5*USB Type A port,1*RJ11 serial port,1*RJ12 cash drawer port,1*RJ45 LANport,1*Audio jack,1*Power port,1*Micro USB debug port |
| Buttons | 1*Power on/off button (lock screen button) |
| External Memory | 1*MicroSD(TF) up to 64G |
| Environment | Operating temp: -10°C~40°C,Storage temp: -20°C~60°C |
| Power Adapter | Input: AC 100~240V/1.7A,Output: DC 24V/2.5A |
| Dimensions(L*W*H) | 453*410*517mm |
| Total Weight | Config 1: 13.5kg,Config 2: 14.8kg |
| Range | Maximum: 6/15kg (dual interval),Minimum: 400,T= -5,998kg |
| Division Value | e=2/5g |
| Scale Pan | 394*284mm |
| Indicator Light | Blue (power button) |
