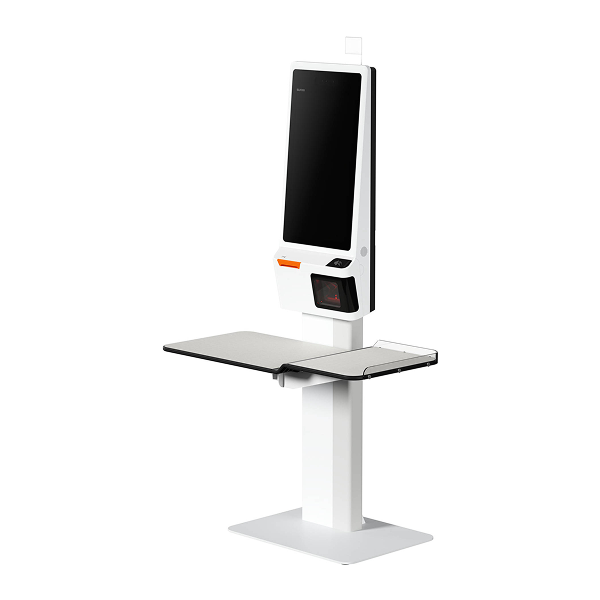

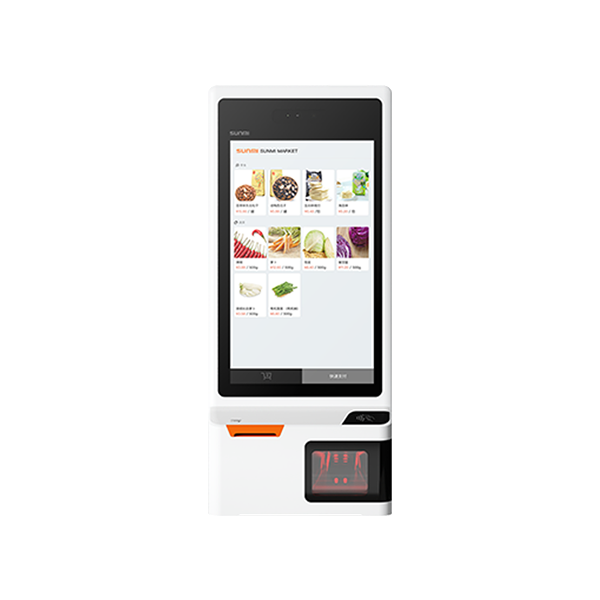

Smart Kiosk Terminal
| Product Model | Config 1: F4E02,Config 2: F4E00,Config 3: F4E00 |
| OS | Config 1: SUNMI OS based on Android 13,Config 2: based on Android 9,Config 3: based on Android 7 |
| Processor | Config 1: Kyro-670 Qualcomm octa-core up to 2.7GHz,Config 2/3: Hexa-core(Dual Cortex-A72+ Quad Cortex-A53) processor, 1.8GHz |
| Memory | Config 1: 6G RAM+128G ROM,Config 2: 4G RAM+32G ROM,Config 3: 4G RAM+16G ROM |
| Display | 23.8" FHD, 1920*1080 Capacitive multi-touch screen |
| Camera(Optional) | 3D facial recognition camera |
| Scanner | Support 1D/2D mobile and printed barcodes or support 1D/2D mobile barcodes |
| Printer | Built-in 80-column thermal printer with auto cutter,Print speed: 250mm/s; Paper roll:φ80mm,Support 58mm width thermal paper(optional) |
| PSAM Card Slot (Optional) | 1*PSAM |
| NFC Reader | Config 1: Support Mifare 1 card(S50,S70) and IS0 14443A CPU card,Config 2/3: Support ID card, Mifare 1 card(S50,S70) and IS0 14443A CPU card |
| Buttons | 1*Power on/off button(lock screen button) |
| Bluetooth | Bluetooth 2.1/3.0/4.2 BLE |
| Wi-Fi | Config 1: 2.4GHz/5GHz/6GHz IEEE 802.11 a/b/g/n/ac/ax,Config 2/3: 2.4GHz/5GHz IEEE 802.11 a/b/g/n |
| Power Adapter | Input: AC100~120V/AC200~240V,Output: DC 12V/24V |
| LAN | 100/1000M Self-adaptive |
| External Memory | 1* MicroSD (TF), up to 128G |
| Ports | 5*USB TypeA port,1*Rj45 LAN port,1*Audio Jack,1*Micro USB debug port,1*HDMI port |
| Environment | Operating temp.: 0 ~ 40°C; Storage temp:-20°C ~ 55°C |
| Speaker | 2*3W |
| MIC | 1*MIC |
| Indicator Light | 7 colors |
| accessories | NFC, POS bracket, shopping bag hanger |
| Dimensions | Wall-mounted: 394*171*1017mm,Floor-standing with table: 1018*649*1850mm,Floor-standing: 540*490*1850mm,Healthcare Version (Scalable): 540*490*1810mm |
| Total Weight | Wall-mounted:16.5Kg,Floor-standing with table: 58Kg,Floor-standing: 45Kg,Healthcare Version (Scalable): 50Kg |
