Accessory

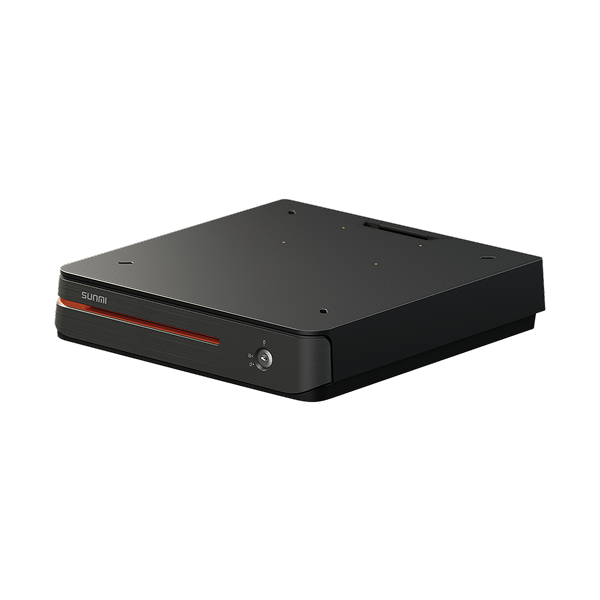

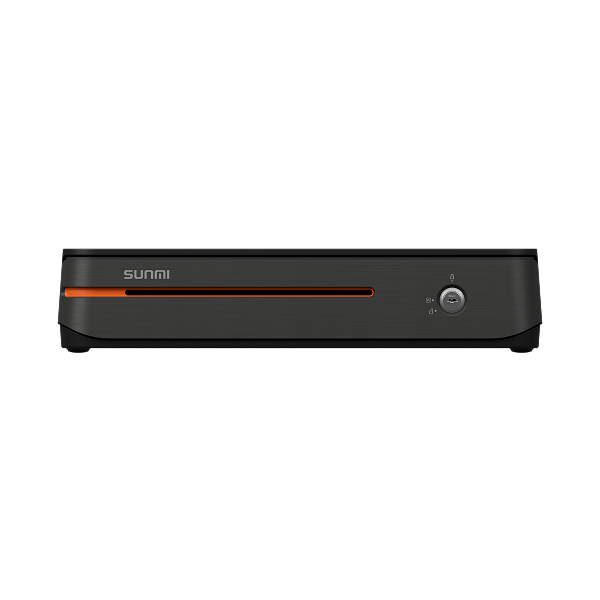

MAX Cash Drawer

Maximize your potential

Cash Drawer ABS drawer
Trays 5 bill trays, 1 media slot,4 fixed & 6 removable coin trays
Cable RJ12, 6P4C, 0.8m
Lock 3-position lock: Open by driver/by key/lock
Bill Clip Plastic and metallic
Cable Storage Rear-set drawer
Drive Voltage DC9V - 24V, 1A
Drive Pulse Width 100ms-300ms
Drive Protections 3A Overcurrent Protection,Input Pulse Overvoltage Protection,Input Pulse Timeout Protection,Self-Adaptive to 9V-28V Input Voltage,Contact ESD -8KV / Air ESD 15KV,Thermal Shutdown
Service Life >One million operations
Status Feedback Status detection switch
Dimensions W430mm x L457mm x H88mm
Weight 5.8 Kg
Environment Operating temperature and humidity: 0°C ~ 45°C, 30% - 85%,Storage temperature and humidity: -20°C ~ 60°C, 10% - 90%
