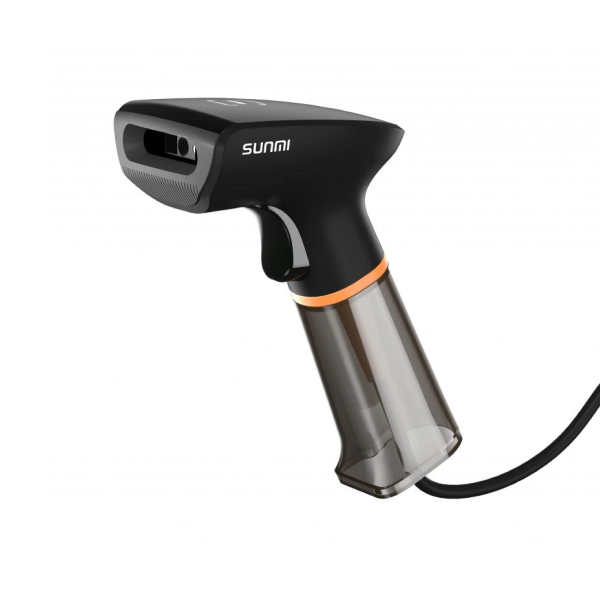

2D Handheld Scanner
| OS | Windows/iOS,Android/Linux |
| Image Sensor | CMOS |
| Pixel | 640x480 |
| Reading Precision | ≥3mil |
| Reading Depth of Field | EAN13 (13mil) 55mm-300mm,QR CODE (15mil) 35mm-190mm |
| Lighting | White LED |
| Dimensions | 16cm×9.5cm×7.1cm |
| Communication Port | USB 2.0 TypeA male connector |
| Focusing | Red light LED 625nm |
| Barcode Sensitivity | Inclined ±50°/rotary 360°/deflected ±50° |
| Field of View Angle | Horizontal 45°, vertical 34° |
| Power Adapter | Operating voltage: DC5V±5%,Operating current: <500mA |
| Symbol Contrast | ≥30% |
| Prompt | Buzzer, vibrator,LED prompt |
| Environment | Operating temperature: -10°C~50°C,Storage temperature: -40°C~70°C,Relative humidity: 5%-95% (no condensation),Electrostatic protection: ±8kV (direct discharge),±15kV (air discharge),Drop height: 1.2meters |
| Symbologies | 1D: Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand,2D: PDF417, QR Code, Data Matrix |

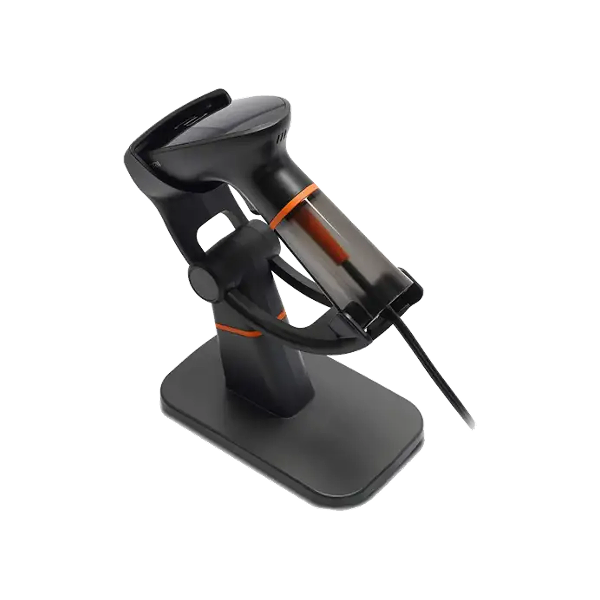

| Optional Configurations | 2D Handheld Scanner Base: For self-checkout or hand-free barcode scanning |
