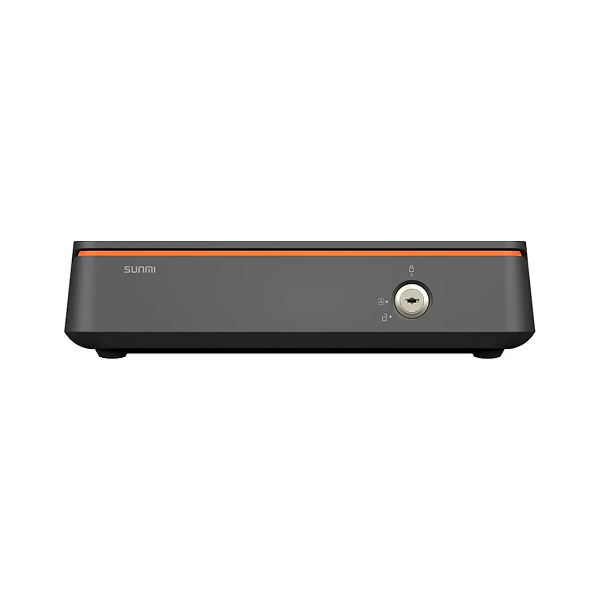

Mini Cash Drawer
| Cash Drawer | Plastic and metallic |
| Trays | Four normal bill & one big bill trays,Three coin trays |
| Metallic Bearing | Up to 10kg bearable |
| Cable | RJ12, 6P4C, 0.8m |
| Lock | Three positions lock (electronic, manual and deadlock) |
| Bill Clip | Plastic and metallic |
| Cable Storage Compartment | Rear-set compartment with cover |
| Drive Voltage | DC9V-24V, 1A |
| Drive Pulse Width | 100ms-300ms |
| Drive Protections | 3A overcurrent protection triggered by electromagnetic valve short circuit,Input pulse overvoltage protection,Input pulse timeout protection,Self-adaptive to 9V-28V input voltage,Contact ESD 8kV/air ESD 15KV,Termal shutdown |
| Service Life | ≥1000000 operations |
| Noise | <50dB |
| Status Feedback | Status detection switch |
| Size | W317mm x L332mm x H72mm |
| Total Weight | 2.3Kg |
| Environment | Working temperature and humidity: 0°C ~ 45°C, 30% ~ 85%,Storage temperature and humidity: -20°C ~ 60°C, 10% ~ 90% |
